Electronic Sectionaliser

Electronic Sectionaliser

0.00

Insulect Electronic Sectionalisers have been developed for use on overhead distribution lines. The Electronic Sectionaliser links are used in conjunction with an upstream recloser and replace the traditional spur dropout fuse protection.

  • Rated 12/24kV and 36kV

  • Pickup current rating from 8 to 400 amp

  • Operates in conjunction with an upstream field recloser with operating counts field settable to 1, 2, 3 or 4 trips.

  • SWER, single phase or three phase configurations

  • Fits in the majority of manufacturer’s single vented drop-out-fuse mounts.

Add To Cart



ELECTRONIC SECTIONALISER SPECIFICATION

The sectionaliser suits installation in low and high current applications such as SWER lines or rural locations.

Electronic Sectionalisers have been developed for usage on overhead distribution lines to eliminate transient faults. They are typically used in conjunction with a recloser and replace the traditional dropout fuse protection.





Voltage Rating

12, 24, 36kV with pickup current ratings from 8A up to 400A.


Simple customisation

performance settings can be manually adjusted with ease.

power pole.png

Mounting options

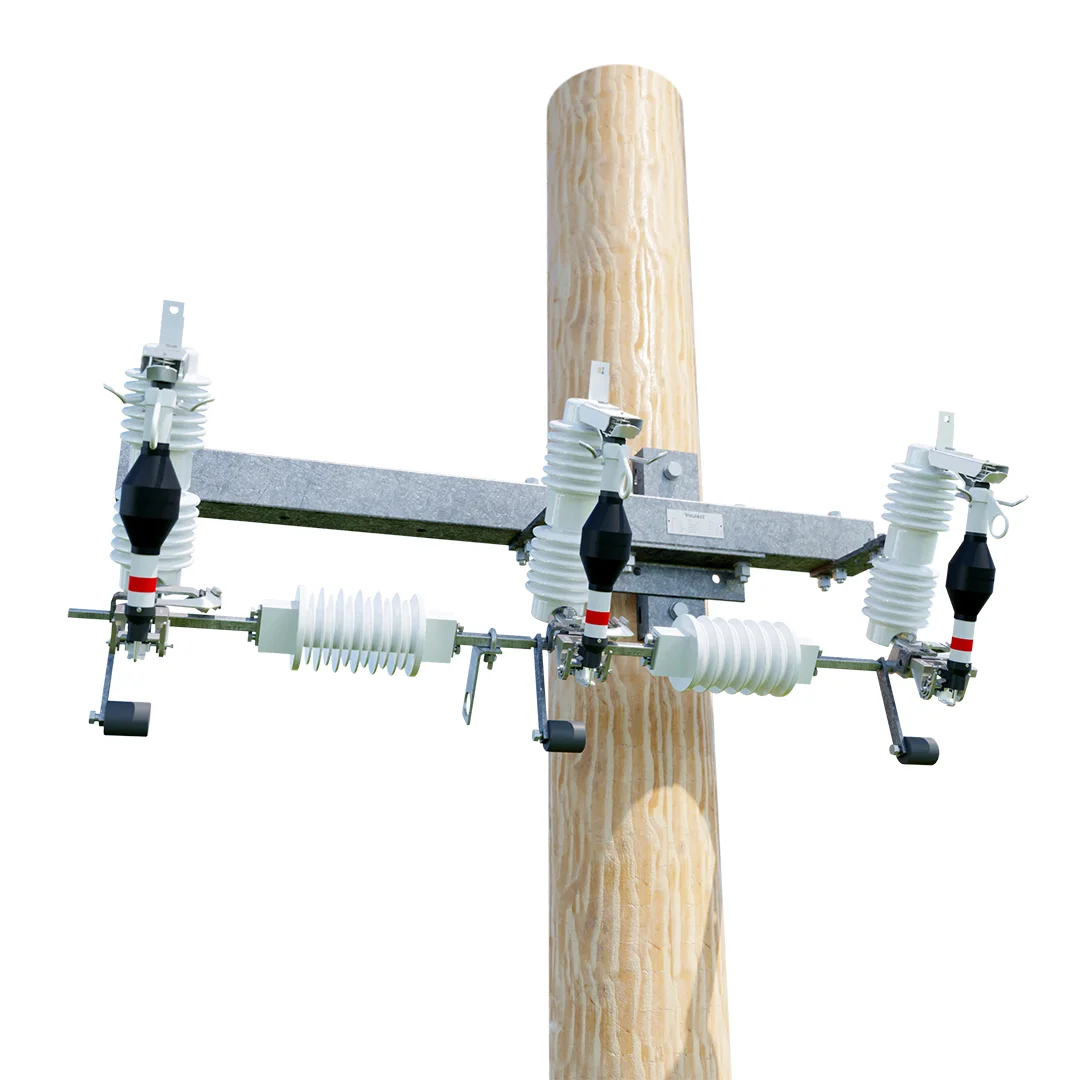

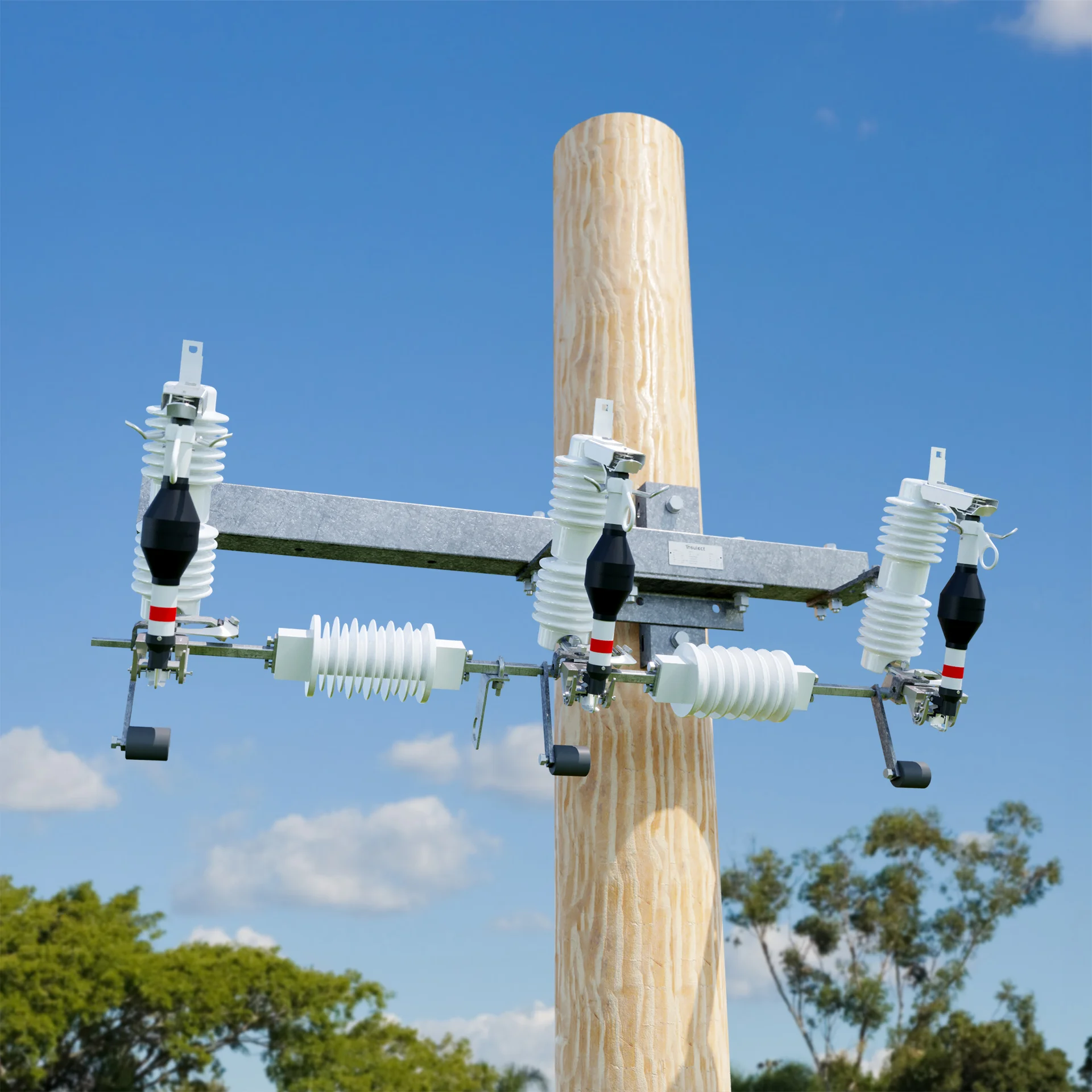

Single, double or three pole ganged mounts available with hotstick operation.


One EDO size
fits all

Fits standard single venting 150kV BIL and 170kV BIL EDO mounts
